Feature

· Lightweight and Mobile Handling: 320g / 11.3oz Build for Easy Carry and Fast Target Acquisition

· Versatile Reticle With Illumination: VMD-2 MIL Reticle With Ranging Marks and 5-Level Red/Green Brightness

· Wide Elevation Adjustment Range: 1/2 MOA Clicks With 200 MOA Total Travel for CQB and Dynamic Shooting

· Comfortable and Flexible Eye Relief: 112–95mm / 4.4–3.7in for Clear Sight Picture in Varied Shooting Positions

· Bright, Clear Imaging: Fully Multi-Coated Glass Delivers Crisp Visuals Across Light Conditions

Relations



Dimensions

Reticle

Specification

· Magnification: 1-4x

· Objective Lens: 20mm

· Ocular Lens Dia: 38mm / 1.5 inch

· Ocular Length: 52mm / 2.0 inch

· Tube Diameter: 25.4mm / 1 inch

· Exit Pupil: 20.0-5.0 mm

· Length: 235mm / 9.25''

· Weight (net): 320g / 11.3oz

· Eye Relief: 112-95mm / 4.4-3.7 inch

· Field of View: 68-23.8 feet@100yds

· Optics Coating: Fully-multi coated

· Reticle: VMD-2

· Click Value: 1/2MOA

· Evaluation Range: 200 MOA

· Windage Range: 200 MOA

· Parallax Setting: 50 Yards

· Finish: Black matte

· Illumination: 5 level R and G

· Battery Type: CR2032

· Length of middle turret part: 31mm (1.2 inch)

· Distance between middle turret parts to power ring: 56mm (2.2 inch)

· Shock tested to 500g, water resistant fully nitrogen purged

· High quality 6063 T6 aircraft grade aluminum

· Diopter compensation from fast-focus eyepiece -2 to +1.5

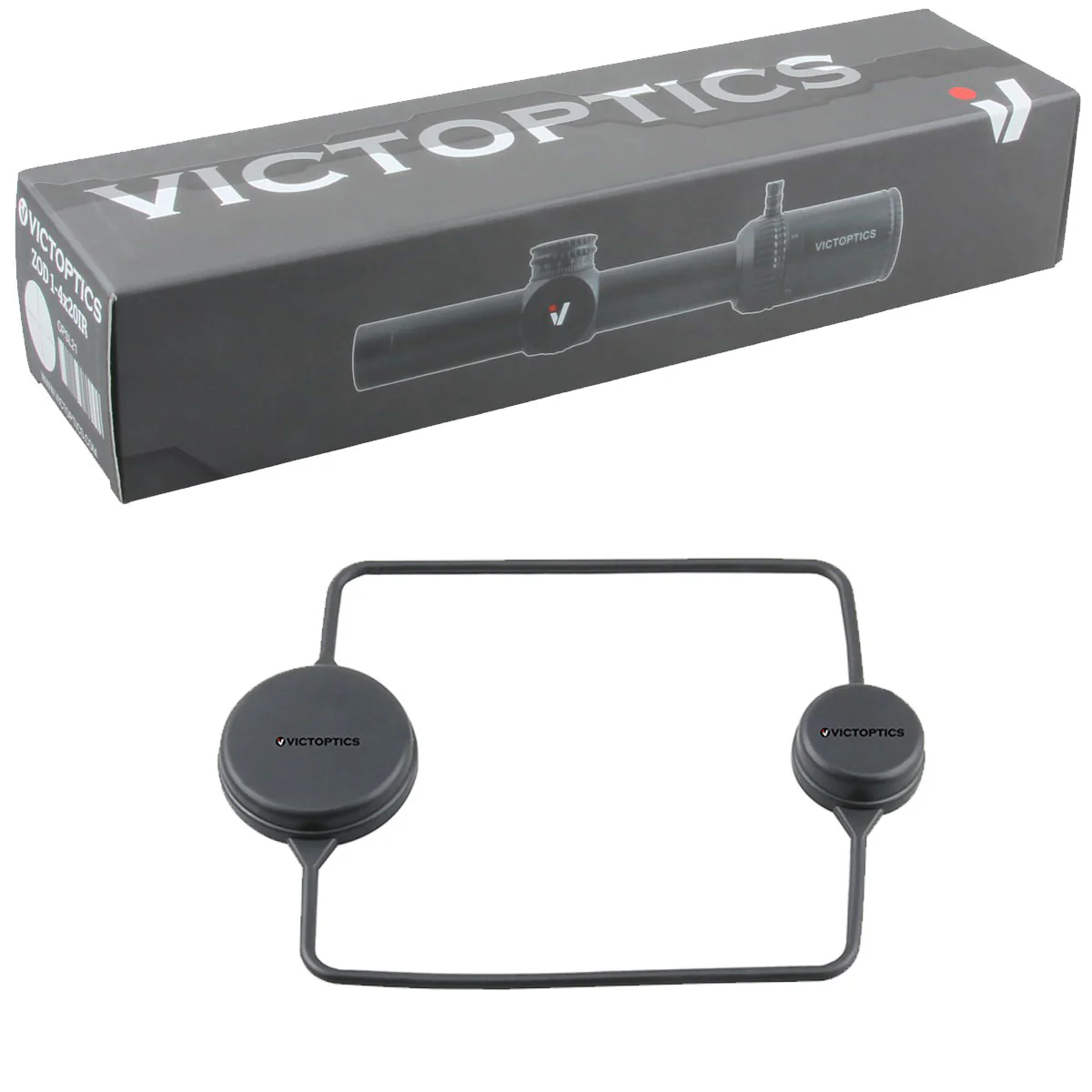

· Including items: weaver rings (default) or dovetail mount ring (on request only), throw lever, cleaning cloth, instruction, lens cap and packed in nice retail box
